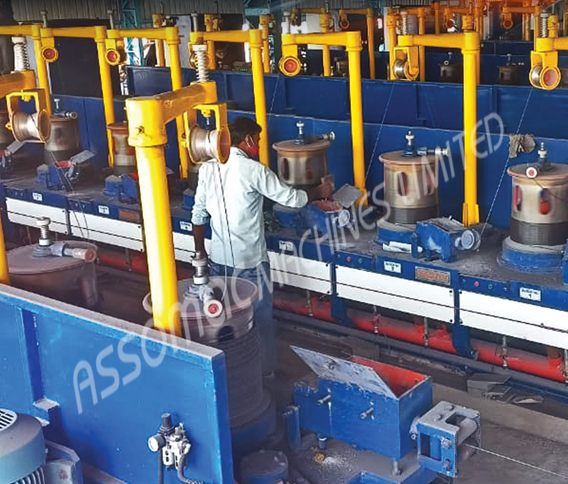

The wire is drawn through a die located in an independent die box and is accumulated on the block before being transported through the differential assembly and OTO pulley to the next die. The BB Block features a twist-free design, equipped with a bobbin block for effective accumulation and transfer to the subsequent block, making it ideal for achieving higher speeds and better-quality finishes.

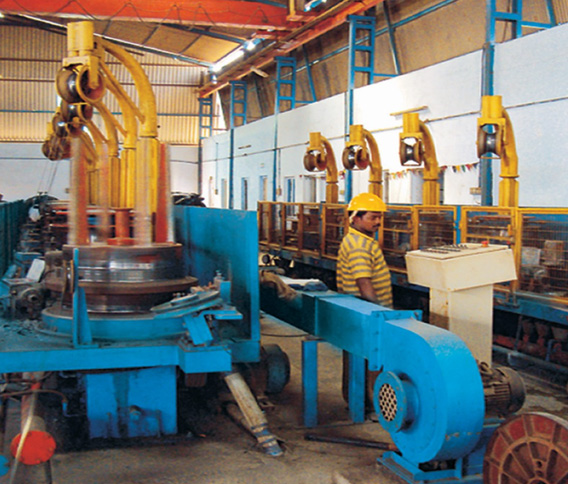

Accumulation-Type Dry Drawing Blocks
Overview
ASSOMAC provides a comprehensive selection of advanced high-speed and robust for OTO/BB type wire drawing machines. These machines are designed to endure the demanding conditions of a wire drawing plant while ensuring reliable performance and accuracy with minimal maintenance. The OTO/BB type machines are versatile and suitable for applications involving stainless steel, high carbon steel, alloy steel, mild steel, and copper wire drawing.
Specification
Key Features
- Specifications of 760 / 650 / 610 / 560 / 460 / 400 / 350 / 300 mm Single/Multi-Speed, Non-slip Accumulative Continuous Wire Drawing Machines.
- Continuous inline machines designed for substantial cross-sectional reductions.
- Inlet sizes up to 12 mm for High Carbon Wire Rods and 16 mm for Low Carbon Wire Rods. Option to combine with BB type machines for high-speed, twist-free operations.
- Variable speed control utilizing AC variable drives.
- Heavy-duty fabricated gearboxes featuring worm and worm wheel designs, equipped with standard (Premium Transmission) gears.
- Possible combinations of Worm, Heli-Worm, or Bevel Helical gear reduction as needed.
- Dry or wet lubricant type die boxes available, with optional rotating die and motorized soap applicators.
- Die chamber designed for forced water cooling, either indirectly or directly.
- Optional pneumatic disk brakes installed on machines.
- Operator console can be located on an independent block or as part of a common floor-standing control desk. Inching capability with a foot-operated pedal switch for reverse and forward motion.
- Graded cast iron drums with a Chrome Carbide hard matrix in the drawing section.
- Forced water-cooled drums to extend drum life and keep wire cooler during drawing.
- Additional features include air-cooled drums with a specially designed uniform cooling air jacket, wire unloading stripper blocks, dead block coiler, or spooler.
